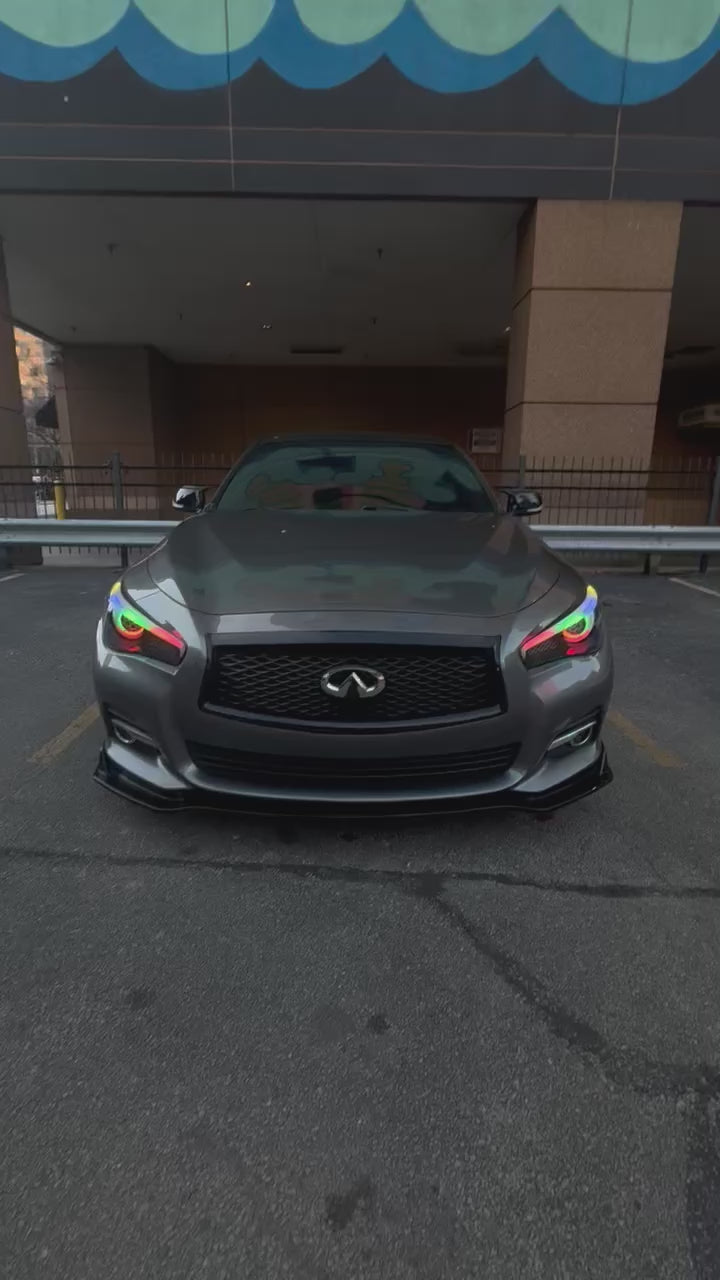

Infiniti Q50 (2014-2021) - Flow Series Package

FLOW SERIES PACKAGE

Take your build to the next level with a full RGB set up.

WHATS INCLUDED

•    Comes standard with frosted eyebrow and crescent with Blacked out housing (if optioned).

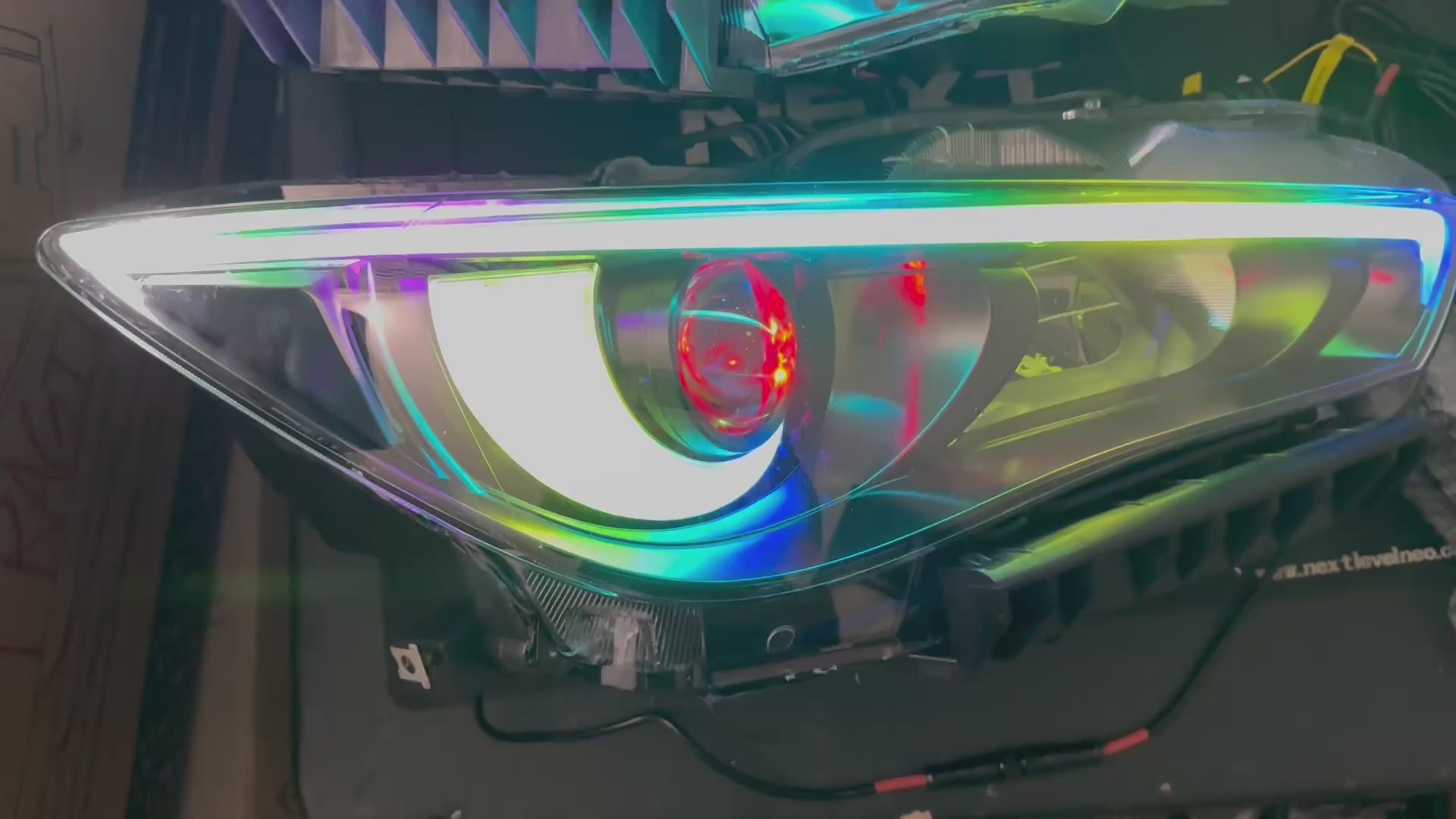

•    Super bright RGBW Flow LEDS In eyebrow and crescent
•    Controlled by Next Level Neo Flow Series Controller
•    Over 200 show modes
•    Sequential turn signals
•    Startup animation
•    All controlled via App “Magic-LED”
•    A single “Kill switch” remote for activating and deactivating color mode-Saves battery
•    Mostly Plug and play, No Rats nest of wires here.

WHATS NOT INCLUDED

•    This package does not have the ability to have multiple colors at once(mix and match colors).
•    Example, you can’t have the eyebrow one color while the crescent another, or halos one color and other components another color.
•    DEMON EYES are the only add ons that has the ability to display a different color than everything else, due to it having a different controller and app

INSTALL

•    Install is 70% plug and play. Each headlight will have a single Black barrel connector that plugs into the controller.

•    The controller has two ring terminals for ground and power, each should be installed on battery power and ground respectively.

•    Controller will have: A two-barrel connector, one for each headlight (plugs into headlight receiving barrel connector), 1 white drl wire with a posi tap at the end (this will be screwed/tapped into a receiving posi tap already installed underneath the PASSENGER headlight), and finally 2 turn signal wires with a posi-tap at the end, one for each headlight.

•    To tap for turn signals, this is found on your OEM bumper lights (rectangular lights, NOT circular fog lights). The bumper light has a 2 pin connector that when the wire loom is pushed aside, displays a red and black wire. The red wire should be tapped for turn signal power using the provided posi tap.

•    Another area to tap for turn signal power would be the connector where you OEM bumper lights were original plugged in to. This connector is usually clipped underneath the headlight on a frame piece. Peel back/cut away wire loom to expose: Purple/blue wire and black wire. Tap the purple/blue wire, for turn signal power.

•    If Bumper lights were also purchased, YOUR HEADLIGHTS WILL NOT HAVE A TURN SIGNAL WIRE. Your new bumper lights will have a connector that should be plugged in to where you old OEM bumper lights where originally plugged into.

OPERATION

•    See my YouTube Video on this on my channel named “Q50 CUSTOM HEADLIGHTS: FLOW SERIES BUILD”  https://youtu.be/LWP0kDbPZwQ?si=qqVDZs1GpdtWPLBj

ADD ONS

•    SIDE REFLECTORS: Choose whether to keep the orange reflector, or have it Blacked or Whited out.


•    HALOS: An Led ring that sits around the projector. If opted for the RGB HALOS, these are synced to your RGB headlights.


•    DEMON EYES: An Led mounted behind your projector that illuminates the projector lens with any desired color. THIS DOES NOT REPLACE YOUR LOWBEAM. When low beam and demon eyes are on, your low beam will ALWAYS out shine the demon eyes. If opted for DEMON EYES, Build will come with a controller that connects directly to your battery (positive and negative terminal). This controller plugs into the rear of your headlight to a receiving end. DEMON EYES are controlled via app called "BanlanX"

•    LENS ECTHING: A desired design placed on the projector lens, that does not affect light output. If opted for etched lens design, the DEMON EYES add on pairs exceptionally well with them; as they back light your design on the lens.

•    HIGHBEAM BLOCK OFF PLATE: This is a decorative honeycomb black plate that sits in front of your high beams, ultimately illuminating your high beams.

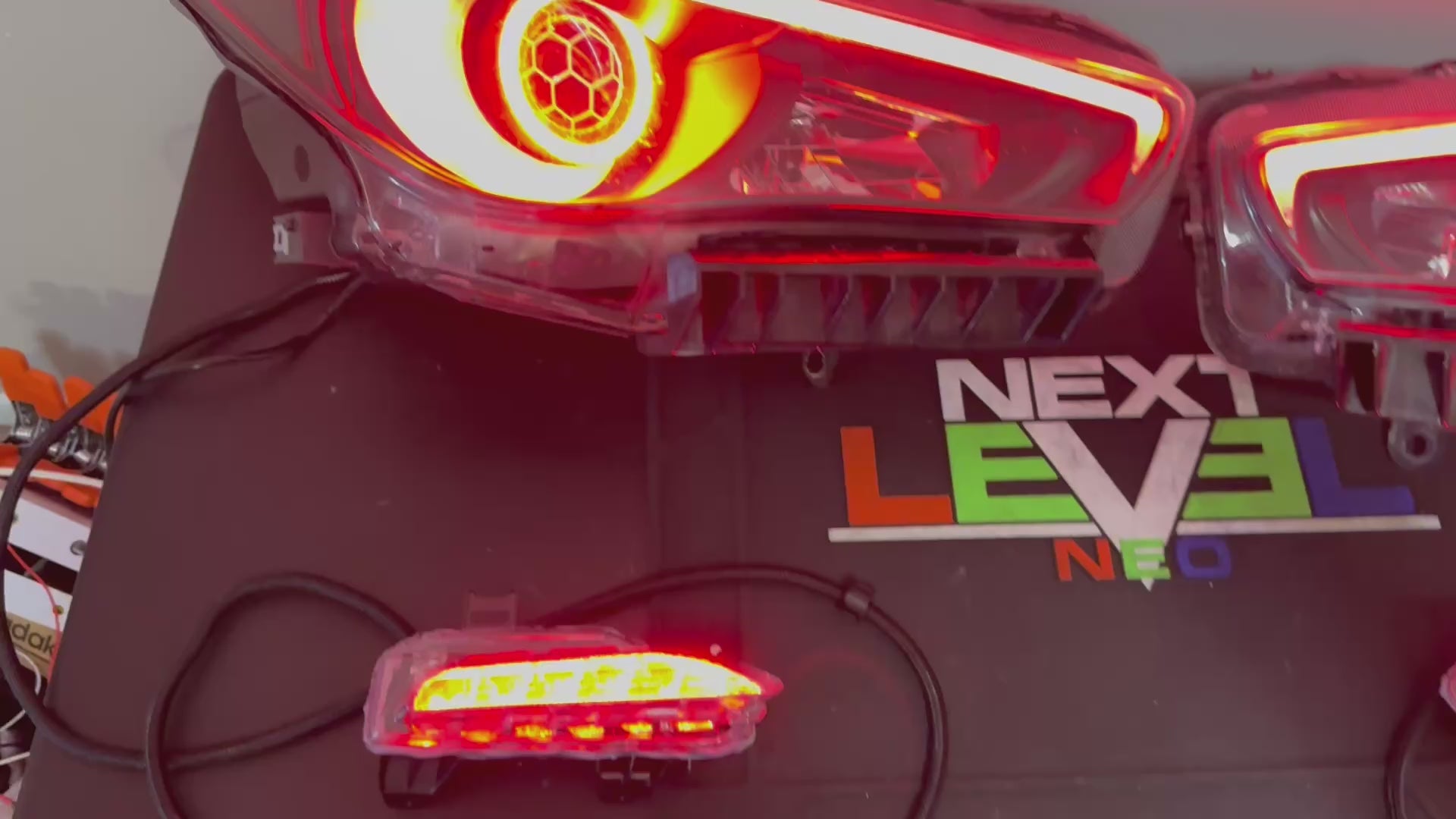

•    BUMPER LIGHTS: These are frosted white brand-new bumper lights that replaces your oem one. If opt, these are synced to your RGB headlights.

•    RGB MIRRORS: These are brand new mirror RGB leds. If opt, these are synced to your RGB headlights. For additional instructions on how to install, send me a message.

SHIPPING YOUR HEADLIGHTS

•   Customers are responsible for shipping their headlights
•    We are not responsible for any damages customers headlights may receive upon shipping
•    For Best rates when shipping headlights use: Free UPS and USPS shipping software | Pirate Ship
•    Ship headlights to this address with order number included:

RetrofitSamurai
110 Woodland Ct.
Apt. 3C
Carpentersville IL, 60110

IMPORTANT INFORMATION
•    All retrofits builds 6 – 8 Week Build Time (Subject to change)
•    For questions on any builds contact me via Instagram

WARRANTY
•    3 Month Warranty
•    1 Year warranty on: DEMON EYES, RGB HALOS, RGB HEADLIGHT CONTROLLER
•    Customers are in charge of shipping product to be reworked on
•    Return shipping is covered by us
